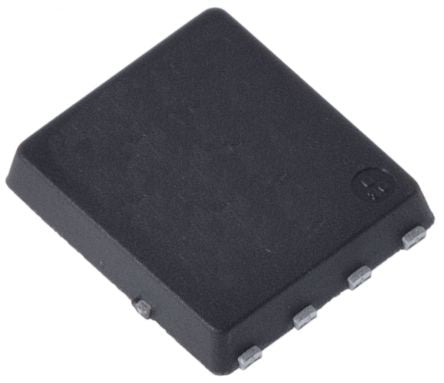

BSC600N25NS3GATMA1 N-Channel MOSFET, 25 A, 250 V OptiMOS 3, 8-Pin TDSON Infineon [BSC600N25NS3GATMA1]; 178-7486
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 25 A |
| Maximum Drain Source Voltage | 250 V |
| Package Type | TDSON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 60 mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 125 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
| Series | OptiMOS 3 |
| Typical Gate Charge @ Vgs | 22 nC @ 10 V |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Width | 5.35mm |
| Length | 6.1mm |
| Height | 1.1mm |
