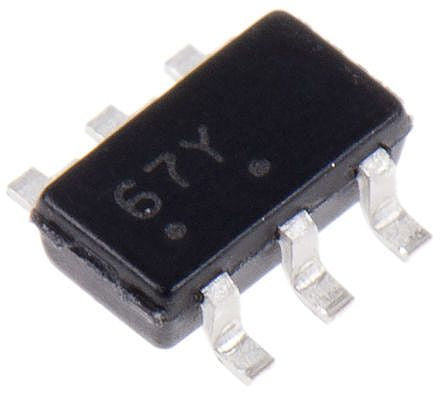

BSL215CH6327XTSA1 Dual N/P-Channel MOSFET, 1.5 A, 20 V OptiMOS, 6-Pin TSOP Infineon [BSL215CH6327XTSA1]; 110-7726
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 1.5 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | TSOP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 250 mΩ, 280 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.6 V, 1.2 V |
| Minimum Gate Threshold Voltage | 0.7 V, 1.2 V |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 2 |
| Typical Gate Charge @ Vgs | 0.73 nC @ 4.5 V, 3 nC @ 5 V |
| Forward Diode Voltage | 1.1V |
| Width | 1.6mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.9mm |
| Transistor Material | Si |
| Height | 1mm |
| Series | OptiMOS |
