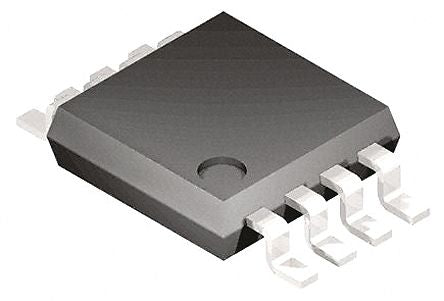

BSO201SPHXUMA1 P-Channel MOSFET, 14.9 A, 20 V OptiMOS P, 8-Pin DSO Infineon [BSO201SPHXUMA1]; 165-5906
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 14.9 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | DSO |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 12.9 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.2V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 2.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Width | 4mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 66 nC @ 4.5 V |
| Length | 5mm |
| Series | OptiMOS P |
| Height | 1.65mm |
| Maximum Operating Temperature | +150 °C |
