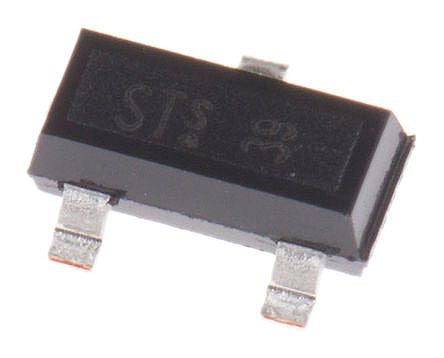

BSS205NH6327XTSA1 N-Channel MOSFET, 2.5 A, 20 V OptiMOS 2, 3-Pin SOT-23 Infineon [BSS205NH6327XTSA1]; 145-9547
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.5 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 85 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.2V |
| Minimum Gate Threshold Voltage | 0.7V |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 0.1mm |
| Length | 2.9mm |
| Transistor Material | Si |
| Forward Diode Voltage | 1.1V |
| Maximum Operating Temperature | +150 °C |
| Series | OptiMOS 2 |
| Typical Gate Charge @ Vgs | 2.1 nC @ 4.5 V |
| Height | 1.3mm |
