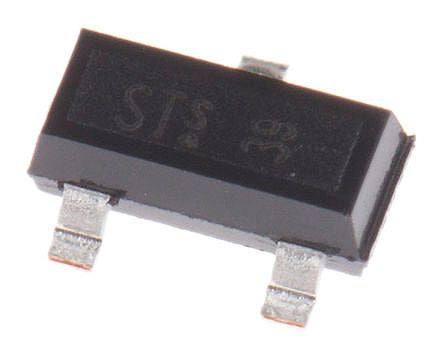

BSS314PEH6327XTSA1 P-Channel MOSFET, 1.5 A, 30 V OptiMOS P, 3-Pin SOT-23 Infineon [BSS314PEH6327XTSA1]; 165-8258
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 1.5 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 230 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 2.9mm |
| Forward Diode Voltage | 1.1V |
| Transistor Material | Si |
| Width | 0.1mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 2.9 nC @ 10 V |
| Height | 1.3mm |
| Series | OptiMOS P |
| Maximum Operating Temperature | +150 °C |
