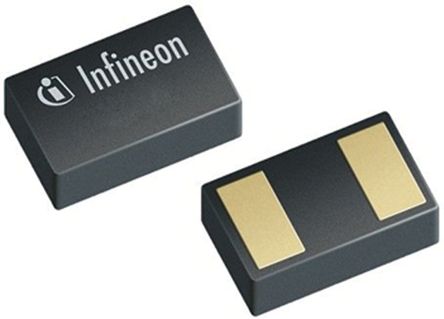

Infineon ESD204B102ELE6327XTMA1, Bi-Directional TVS Diode, 2-Pin TSLP [ESD204B102ELE6327XTMA1]; 110-7106
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 28V |
| Minimum Breakdown Voltage | 8.5V |
| Mounting Type | Surface Mount |
| Package Type | TSLP |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 1A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Test Current | 1mA |
| Length | 1mm |
| Dimensions | 1 x 0.6 x 0.26mm |
| Width | 0.6mm |
| Height | 0.26mm |
| Capacitance | 7pF |
| Maximum Reverse Leakage Current | 50nA |
