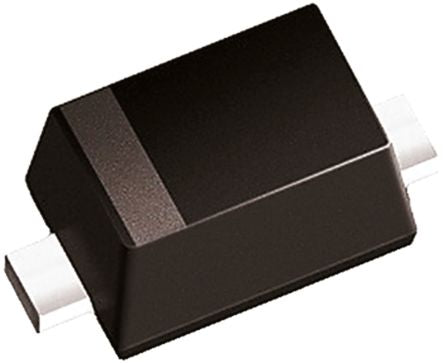

Infineon ESD5V0S1U02VH6327XTSA1, Uni-Directional ESD Protection Diode, 66W, 2-Pin SC-79 [ESD5V0S1U02VH6327XTSA1]; 827-0061
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 14.5V |
| Minimum Breakdown Voltage | 5.7V |
| Mounting Type | Surface Mount |
| Package Type | SC-79 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 66W |
| Maximum Peak Pulse Current | 5.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Test Current | 1mA |
| Length | 0.8mm |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 0.8 x 1.2 x 0.55mm |
| Height | 0.55mm |
| Width | 1.2mm |
| Surge Current Rating | 5.5A |
| Capacitance | 40pF |
