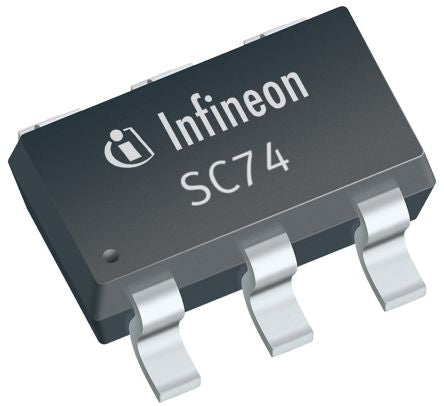

Infineon ESD5V5U5ULCE6327HTSA1, Quint Uni-Directional TVS Diode, 6-Pin SC-74 [ESD5V5U5ULCE6327HTSA1]; 145-9417
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 9.2V |
| Mounting Type | Surface Mount |
| Package Type | SC-74 |
| Pin Count | 6 |
| Maximum Peak Pulse Current | 6A |
| ESD Protection | Yes |
| Number of Elements per Chip | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 1.6mm |
| Length | 2.9mm |
| Capacitance | 1pF |
| Working Voltage | 5.5V |
| Dimensions | 2.9 x 1.6 x 0.95mm |
| Height | 0.95mm |
| Maximum Reverse Leakage Current | 100nA |
| Surge Current Rating | ±6A |
