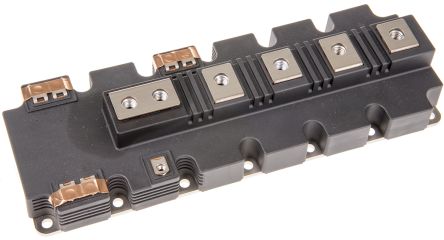

Infineon FF1000R17IE4BOSA1, PrimePACK3 Series IGBT Module, 1 kA max, 1700 V, Screw Mount [FF1000R17IE4BOSA1]; 165-6608
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | Series |
| Transistor Configuration | Series |
| Maximum Continuous Collector Current | 1 kA |
| Maximum Collector Emitter Voltage | 1700 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | Screw Mount |
| Package Type | PrimePACK3 |
| Pin Count | 10 |
| Maximum Power Dissipation | 625 kW |
| Dimensions | 250 x 89 x 38mm |
| Height | 38mm |
| Length | 250mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 89mm |
