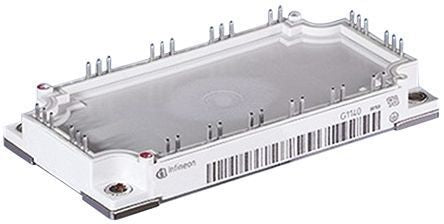

Infineon FS150R12KT4BOSA1, EconoPACK 3 3 Phase Bridge IGBT Transistor Module, 150 A max, 1200 V, Surface Mount [FS150R12KT4BOSA1]; 166-0972
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | 3 Phase Bridge |
| Transistor Configuration | 3 Phase |
| Maximum Continuous Collector Current | 150 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | Surface Mount |
| Package Type | EconoPACK 3 |
| Pin Count | 35 |
| Maximum Power Dissipation | 750 W |
| Dimensions | 122 x 62 x 17mm |
| Height | 17mm |
| Length | 122mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 62mm |
