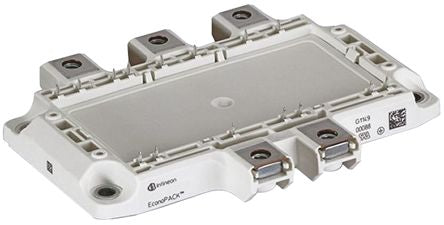

Infineon FS150R12PT4BOSA1, ECONO4 3 Phase Bridge IGBT Module, 200 A max, 1200 V, PCB Mount [FS150R12PT4BOSA1]; 838-6901
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Configuration | 3 Phase |
| Configuration | 3 Phase Bridge |
| Maximum Continuous Collector Current | 200 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | PCB Mount |
| Package Type | ECONO4 |
| Pin Count | 20 |
| Switching Speed | 1MHz |
| Maximum Power Dissipation | 680 W |
| Dimensions | 130 x 70.6 x 17mm |
| Height | 17mm |
| Length | 130mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 70.6mm |
