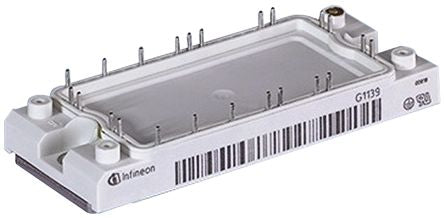

Infineon FS50R07N2E4BOSA1, ECONO2 3 Phase Bridge IGBT Module, 70 A max, 650 V, PCB Mount [FS50R07N2E4BOSA1]; 165-5684
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | 3 Phase Bridge |
| Transistor Configuration | 3 Phase |
| Maximum Continuous Collector Current | 70 A |
| Maximum Collector Emitter Voltage | 650 V |
| Maximum Gate Emitter Voltage | ±20V |
| Channel Type | N |
| Mounting Type | PCB Mount |
| Package Type | ECONO2 |
| Pin Count | 28 |
| Switching Speed | 1MHz |
| Maximum Power Dissipation | 190 W |
| Dimensions | 107.5 x 45 x 17mm |
| Height | 17mm |
| Length | 107.5mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 45mm |
