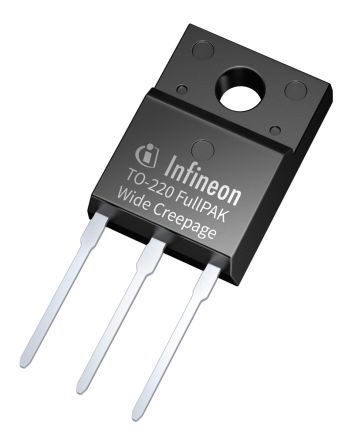

IPAW60R380CEXKSA1 N-Channel MOSFET, 15 A, 600 V CoolMOS CE, 3+Tab-Pin TO-220FP Infineon [IPAW60R380CEXKSA1]; 133-9865
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 15 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-220FP |
| Mounting Type | Through Hole |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 890 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 31 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 32 nC @ 10 V |
| Length | 11.3mm |
| Height | 16.27mm |
| Maximum Operating Temperature | +150 °C |
| Width | 4.9mm |
| Forward Diode Voltage | 0.9V |
| Minimum Operating Temperature | -40 °C |
| Series | CoolMOS CE |
