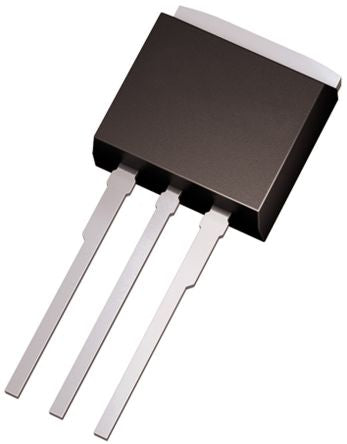

IPI111N15N3GAKSA1 N-Channel MOSFET, 83 A, 150 V OptiMOS 3, 3-Pin I2PAK Infineon [IPI111N15N3GAKSA1]; 165-5164
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 83 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | I2PAK (TO-262) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 10.8 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 214 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 4.52mm |
| Typical Gate Charge @ Vgs | 41 nC @ 10 V |
| Height | 9.45mm |
| Maximum Operating Temperature | +175 °C |
| Series | OptiMOS 3 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Length | 10.36mm |
