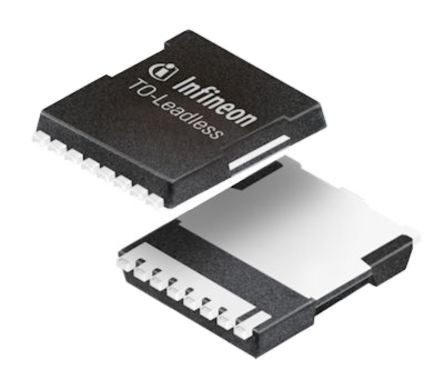

IPLU300N04S4R8XTMA1 N-Channel MOSFET, 300 A, 40 V IPLU300N04S4-R8, 8 + Tab-Pin H-PSOF Infineon [IPLU300N04S4R8XTMA1]; 170-2313
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 300 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | H-PSOF |
| Mounting Type | Surface Mount |
| Pin Count | 8 + Tab |
| Maximum Drain Source Resistance | 770 μΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 429 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 221 nC @ 10 V |
| Height | 2.3mm |
| Maximum Operating Temperature | +175 °C |
| Length | 9.9mm |
| Forward Diode Voltage | 1.3V |
| Width | 11.37mm |
| Series | IPLU300N04S4-R8 |
| Minimum Operating Temperature | -55 °C |
