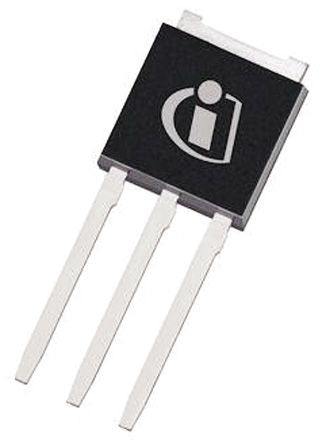

IPU50R1K4CEBKMA1 N-Channel MOSFET, 3.1 A, 550 V CoolMOS CE, 3-Pin IPAK Infineon [IPU50R1K4CEBKMA1]; 168-8783
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 3.1 A |
| Maximum Drain Source Voltage | 550 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.4 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 25 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Length | 6.73mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Series | CoolMOS CE |
| Height | 6.22mm |
| Width | 2.41mm |
| Typical Gate Charge @ Vgs | 8.2 nC @ 10 V |
