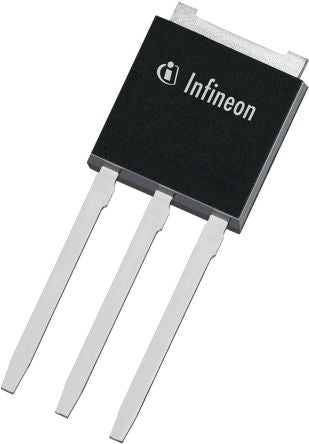

IPU60R2K1CEBKMA1 N-Channel MOSFET, 3.7 A, 650 V CoolMOS CE, 3-Pin IPAK Infineon [IPU60R2K1CEBKMA1]; 130-0930
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 3.7 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.1 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 38 W |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 0.9V |
| Minimum Operating Temperature | -40 °C |
| Series | CoolMOS CE |
| Width | 2.41mm |
| Height | 6.22mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.73mm |
| Typical Gate Charge @ Vgs | 6.7 nC @ 10 V |
