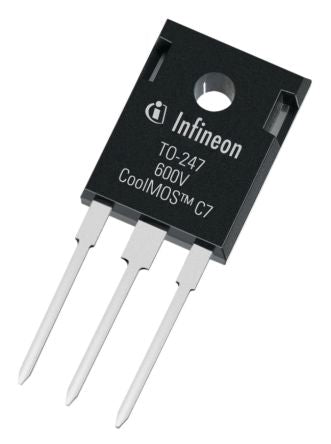

IPW60R040C7XKSA1 N-Channel MOSFET, 50 A, 600 V IPW60R040C7, 3-Pin TO 247 Infineon [IPW60R040C7XKSA1]; 170-2279
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 50 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO 247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 40 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 227 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Series | IPW60R040C7 |
| Maximum Operating Temperature | +150 °C |
| Height | 21.1mm |
| Minimum Operating Temperature | -55 °C |
| Width | 5.21mm |
| Typical Gate Charge @ Vgs | 107 nC @ 10 V |
| Length | 16.13mm |
| Forward Diode Voltage | 0.9V |
