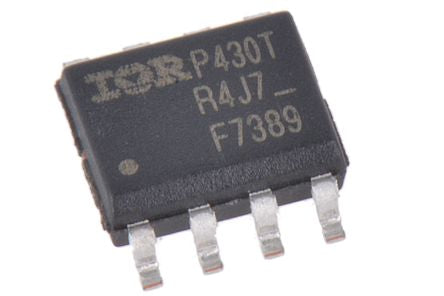

IRF7389TRPBF Dual N/P-Channel MOSFET, 5.3 A, 7.3 A, 30 V HEXFET, 8-Pin SOIC Infineon [IRF7389TRPBF]; 826-8908
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 5.3 A, 7.3 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 46 mΩ, 98 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2.5 W |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Width | 4mm |
| Height | 1.5mm |
| Series | HEXFET |
| Maximum Operating Temperature | +150 °C |
| Length | 5mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 22 nC @ 10 V, 23 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
