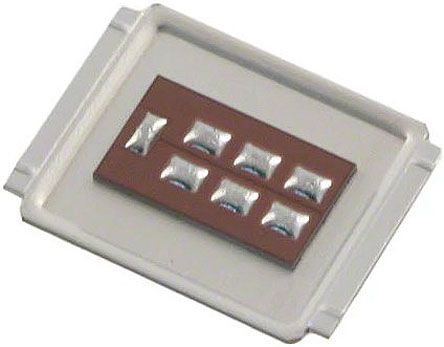

IRF7748L1TRPBF N-Channel MOSFET, 148 A, 60 V DirectFET, HEXFET, 7+Tab-Pin L6 Infineon [IRF7748L1TRPBF]; 168-5965
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 148 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | L6 |
| Mounting Type | Surface Mount |
| Pin Count | 7 + Tab |
| Maximum Drain Source Resistance | 2.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 94 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 146 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Series | DirectFET, HEXFET |
| Maximum Operating Temperature | +175 °C |
| Length | 9.15mm |
| Forward Diode Voltage | 1.3V |
| Width | 7.1mm |
| Height | 0.57mm |
