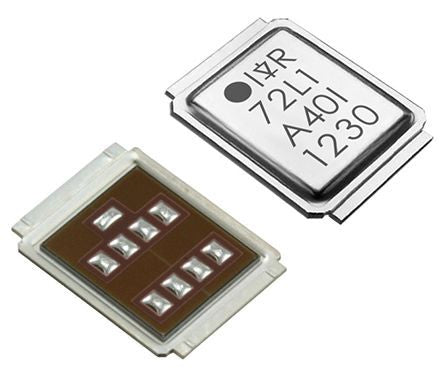

IRF7759L2TRPBF N-Channel MOSFET, 160 A, 75 V DirectFET, HEXFET, 9+Tab-Pin L8 Infineon [IRF7759L2TRPBF]; 130-0955
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 160 A |
| Maximum Drain Source Voltage | 75 V |
| Package Type | L8 |
| Mounting Type | Surface Mount |
| Pin Count | 9 + Tab |
| Maximum Drain Source Resistance | 2.3 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 125 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Series | DirectFET, HEXFET |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.3V |
| Typical Gate Charge @ Vgs | 200 nC @ 10 V |
| Length | 8.5mm |
| Height | 5.2mm |
| Width | 7.1mm |
