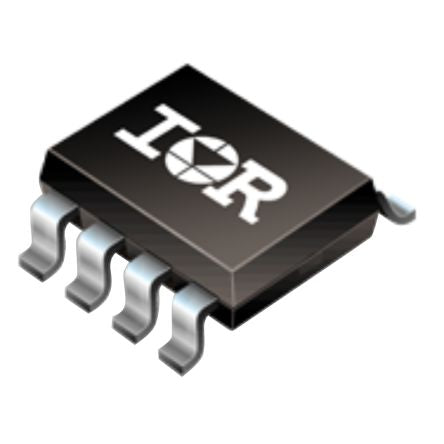

IRF7809AVTRPBF N-Channel MOSFET, 14.6 A, 30 V IRF7809AV, 8-Pin SO Infineon [IRF7809AVTRPBF]; 162-3306
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 14.6 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SO |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 9 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±12 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 4mm |
| Height | 1.5mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 41 nC @ 5 V |
| Forward Diode Voltage | 1.3V |
| Length | 5mm |
| Series | IRF7809AV |
