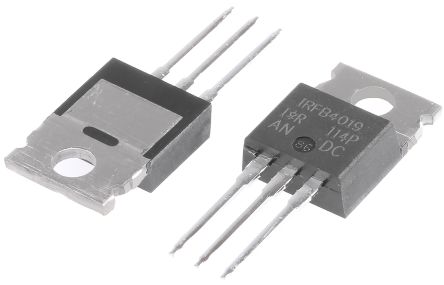

IRFB4019PBF N-Channel MOSFET, 17 A, 150 V HEXFET, 3-Pin TO-220AB Infineon [IRFB4019PBF]; 145-8607
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 17 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 95 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.9V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 80 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Series | HEXFET |
| Minimum Operating Temperature | -55 °C |
| Height | 9.02mm |
| Typical Gate Charge @ Vgs | 13 nC @ 10 V |
| Length | 10.66mm |
| Width | 4.82mm |
| Transistor Material | Si |
