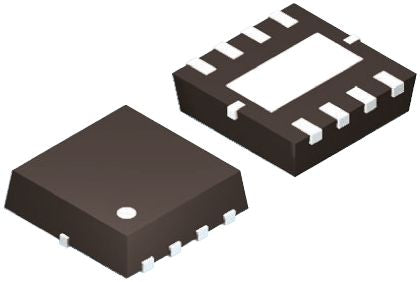

IRFH7446TRPBF N-Channel MOSFET, 85 A, 40 V StrongIRFET, 8-Pin PQFN Infineon [IRFH7446TRPBF]; 165-6673
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 85 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | PQFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3.3 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.9V |
| Minimum Gate Threshold Voltage | 2.2V |
| Maximum Power Dissipation | 78 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 5mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 98 nC @ 10 V |
| Height | 1.17mm |
| Minimum Operating Temperature | -55 °C |
| Series | StrongIRFET |
| Length | 5.85mm |
