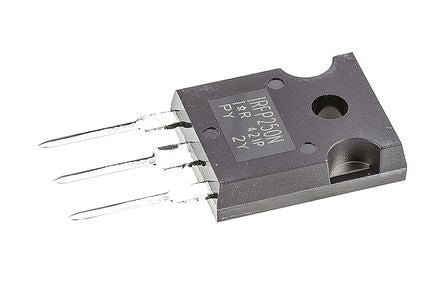

IRFP250NPBF N-Channel MOSFET, 30 A, 200 V HEXFET, 3-Pin TO-247AC Infineon [IRFP250NPBF]; 919-4810
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 30 A |
| Maximum Drain Source Voltage | 200 V |
| Package Type | TO-247AC |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 75 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 214 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 15.9mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Height | 20.3mm |
| Width | 5.3mm |
| Typical Gate Charge @ Vgs | 123 nC @ 10 V |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
