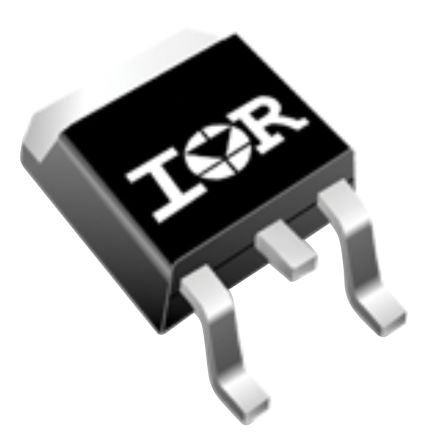

IRFR5305TRLPBF P-Channel MOSFET, 31 A, 55 V IRFR5305PBF, 3-Pin D-PAK Infineon [IRFR5305TRLPBF]; 170-2262
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 31 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | D-PAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 65 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 110 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.3V |
| Width | 7.49mm |
| Length | 6.73mm |
| Typical Gate Charge @ Vgs | 63 nC @ 10 V |
| Height | 2.39mm |
| Maximum Operating Temperature | +175 °C |
| Series | IRFR5305PBF |
| Minimum Operating Temperature | -55 °C |
