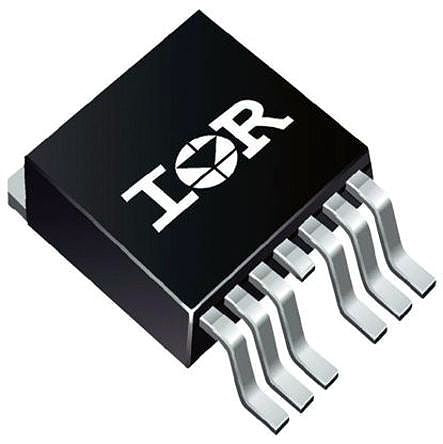

IRFS4010TRL7PP N-Channel MOSFET, 190 A, 100 V HEXFET, 7+Tab-Pin D2PAK Infineon [IRFS4010TRL7PP]; 168-6011
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 190 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 + Tab |
| Maximum Drain Source Resistance | 4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 380 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 150 nC @ 10 V |
| Series | HEXFET |
| Forward Diode Voltage | 1.3V |
| Length | 10.67mm |
| Maximum Operating Temperature | +175 °C |
| Height | 4.83mm |
| Width | 9.65mm |
| Minimum Operating Temperature | -55 °C |
