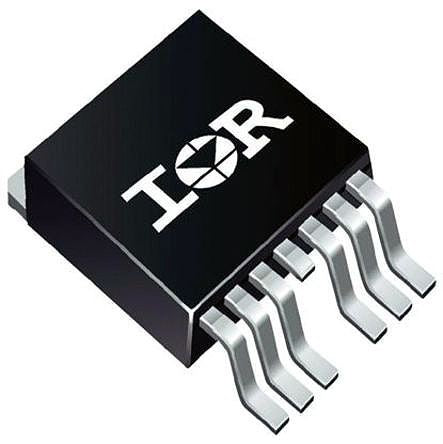

IRFS4321TRL7PP N-Channel MOSFET, 86 A, 150 V HEXFET, 7+Tab-Pin D2PAK Infineon [IRFS4321TRL7PP]; 130-1004
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 86 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 + Tab |
| Maximum Drain Source Resistance | 14.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 350 W |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 4.83mm |
| Minimum Operating Temperature | -55 °C |
| Length | 10.67mm |
| Forward Diode Voltage | 1.3V |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
| Typical Gate Charge @ Vgs | 71 nC @ 10 V |
| Height | 9.65mm |
