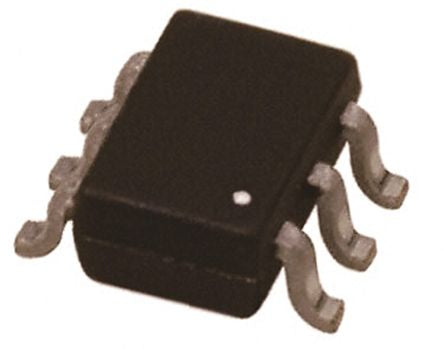

IRFTS8342TRPBF N-Channel MOSFET, 8.2 A, 30 V HEXFET, 6-Pin TSOP Infineon [IRFTS8342TRPBF]; 827-4127
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 8.2 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TSOP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 29 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.35V |
| Minimum Gate Threshold Voltage | 1.35V |
| Maximum Power Dissipation | 2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 4.8 nC @ 4.5 V |
| Width | 1.75mm |
| Length | 3mm |
| Transistor Material | Si |
| Height | 1.3mm |
| Series | HEXFET |
| Maximum Operating Temperature | +150 °C |
