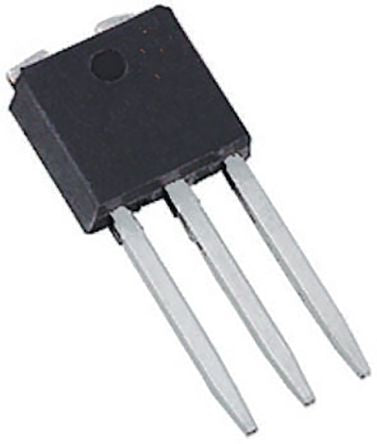

IRL60SL216 N-Channel MOSFET, 298 A, 60 V StrongIRFET, 3-Pin I2PAK Infineon [IRL60SL216]; 145-9185
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 298 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | I2PAK (TO-262) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.4V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 375 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Series | StrongIRFET |
| Height | 11.3mm |
| Width | 4.83mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Typical Gate Charge @ Vgs | 170 nC @ 4.5 V |
| Transistor Material | Si |
| Forward Diode Voltage | 1.2V |
| Length | 10.67mm |
