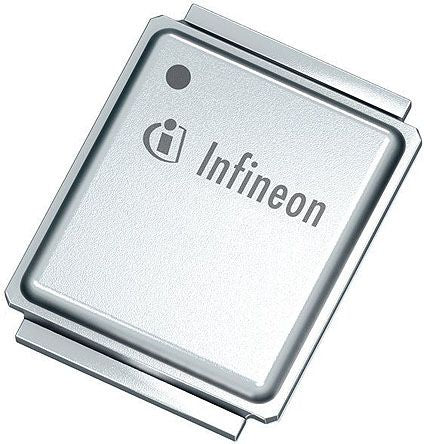

IRL7486MTRPBF N-Channel MOSFET, 645 A, 40 V DirectFET, 9+Tab-Pin L8 Infineon [IRL7486MTRPBF]; 145-8909
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 645 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | L8 |
| Mounting Type | Surface Mount |
| Pin Count | 9 + Tab |
| Maximum Drain Source Resistance | 700 μΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 341 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Width | 7.1mm |
| Length | 9.15mm |
| Typical Gate Charge @ Vgs | 220 nC @ 4.5 V |
| Forward Diode Voltage | 1.2V |
| Series | DirectFET |
| Height | 0.57mm |
