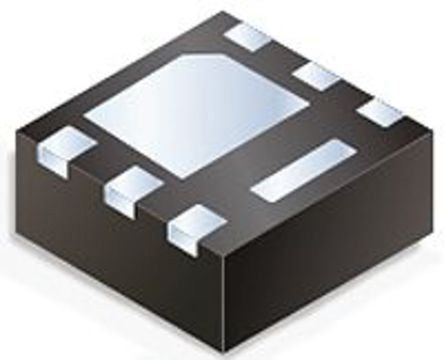

IRLHS2242TRPBF P-Channel MOSFET, 7.2 A, 20 V HEXFET, 6-Pin PQFN Infineon [IRLHS2242TRPBF]; 130-1018
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 7.2 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | PQFN |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 53 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.1V |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 9.6 W |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 12 nC @ 10 V |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
| Series | HEXFET |
| Height | 0.95mm |
| Width | 2.1mm |
| Length | 2.1mm |
| Minimum Operating Temperature | -55 °C |
