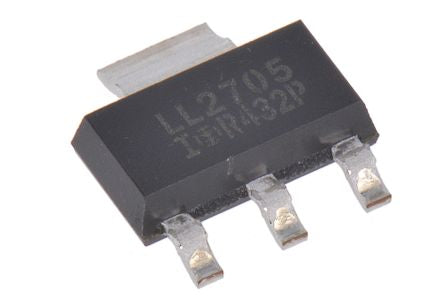

IRLL2705TRPBF N-Channel MOSFET, 5.2 A, 55 V HEXFET, 3+Tab-Pin SOT-223 Infineon [IRLL2705TRPBF]; 830-3304
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.2 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 65 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Width | 3.7mm |
| Typical Gate Charge @ Vgs | 32 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Series | HEXFET |
| Height | 1.739mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.7mm |
