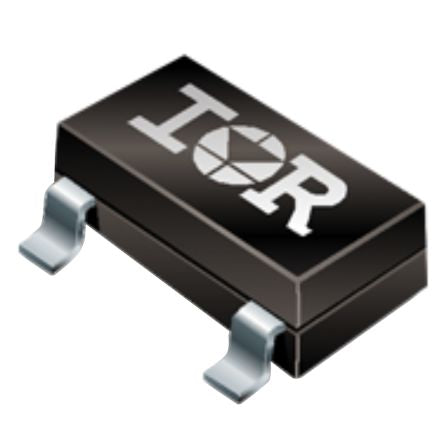

IRLML2502TRPBF N-Channel MOSFET, 4.2 A, 20 V IRLML2502, 3-Pin SOT-23 Infineon [IRLML2502TRPBF]; 162-3274
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 4.2 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 80 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.2V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 1.25 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±12 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 8 nC @ 5 V |
| Height | 1.02mm |
| Series | IRLML2502 |
| Maximum Operating Temperature | +150 °C |
| Width | 1.4mm |
| Forward Diode Voltage | 1.2V |
| Length | 3.04mm |
| Minimum Operating Temperature | -55 °C |
