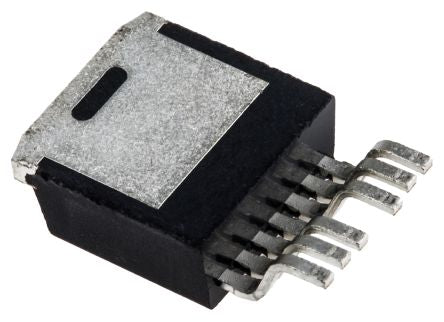

IRLS3036-7PPBF N-Channel MOSFET, 300 A, 60 V HEXFET, 7-Pin D2PAK Infineon [IRLS3036-7PPBF]; 124-9027
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 300 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 |
| Maximum Drain Source Resistance | 2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 380 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Length | 10.67mm |
| Transistor Material | Si |
| Width | 9.65mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 110 nC @ 4.5 V |
| Series | HEXFET |
| Height | 4.83mm |
| Maximum Operating Temperature | +175 °C |
