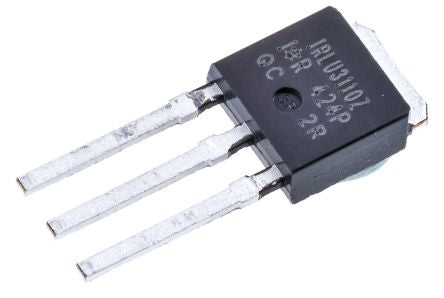

IRLU3110ZPBF N-Channel MOSFET, 63 A, 100 V HEXFET, 3-Pin IPAK Infineon [IRLU3110ZPBF]; 650-4867
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 63 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 14 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 140 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Width | 2.3mm |
| Length | 6.6mm |
| Typical Gate Charge @ Vgs | 34 nC @ 4.5 V |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
| Height | 6.1mm |
