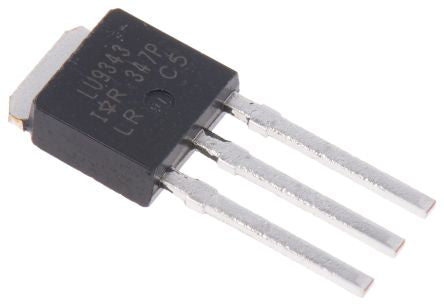

IRLU9343PBF P-Channel MOSFET, 20 A, 55 V HEXFET, 3-Pin IPAK Infineon [IRLU9343PBF]; 650-4643
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 20 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 105 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 79 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 31 nC @ 10 V |
| Height | 6.22mm |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
| Width | 2.39mm |
| Length | 6.73mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -40 °C |
