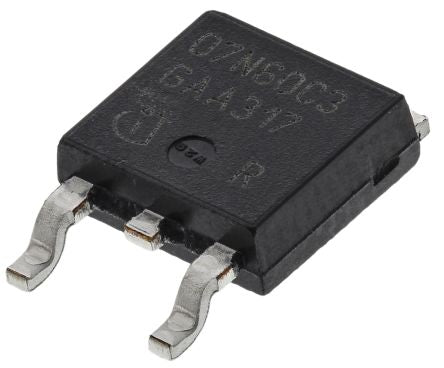

SPD07N60C3BTMA1 N-Channel MOSFET, 7.3 A, 650 V CoolMOS C3, 3-Pin DPAK Infineon [SPD07N60C3BTMA1]; 752-8498
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 7.3 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 600 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.9V |
| Minimum Gate Threshold Voltage | 2.1V |
| Maximum Power Dissipation | 83 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 21 nC @ 10 V |
| Length | 6.73mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Series | CoolMOS C3 |
| Height | 2.41mm |
| Width | 6.22mm |
| Minimum Operating Temperature | -55 °C |
