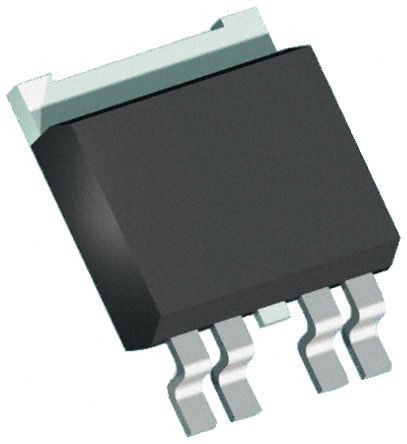

SPD50P03LGBTMA1 P-Channel MOSFET, 50 A, 30 V OptiMOS P, 5-Pin DPAK Infineon [SPD50P03LGBTMA1]; 752-8495
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 50 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 5 |
| Maximum Drain Source Resistance | 12.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 150 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 95 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Width | 6.22mm |
| Height | 2.41mm |
| Length | 6.73mm |
| Maximum Operating Temperature | +175 °C |
| Series | OptiMOS P |
