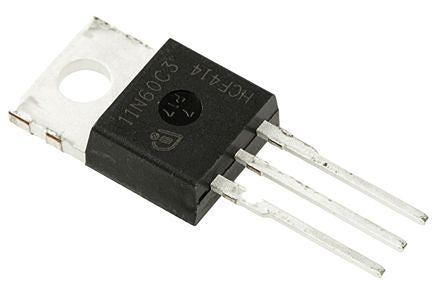

SPP11N60C3HKSA1 N-Channel MOSFET, 11 A, 600 V CoolMOS C3, 3-Pin TO-220 Infineon [SPP11N60C3HKSA1]; 911-4833
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.458333333333333 |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 380 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.9V |
| Minimum Gate Threshold Voltage | 2.1V |
| Maximum Power Dissipation | 125 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 10.26mm |
| Minimum Operating Temperature | -55 °C |
| Series | CoolMOS C3 |
| Height | 4.4mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 45 nC @ 10 V |
| Length | 8.64mm |
