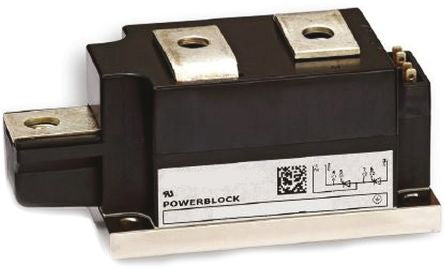

Infineon, TD330N16AOFHPSA1, Diode/Thyristor Module SCR, PCT, 330A 1600V, 5-Pin Module 50mm [TD330N16AOFHPSA1]; 145-9515
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Thyristor Type | PCT |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Gate Trigger Current | 200mA |
| Maximum Holding Current | 300mA |
| Rated Average On-State Current | 330A |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 9100A |
| Mounting Type | Panel Mount |
| Package Type | Module 50mm |
| Pin Count | 5 |
| Peak On-State Voltage | 1.44V |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Repetitive Peak Off-State Current | 70mA |
| Dimensions | 92 x 50 x 52mm |
| Width | 50mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +130 °C |
| Height | 52mm |
| Length | 92mm |
