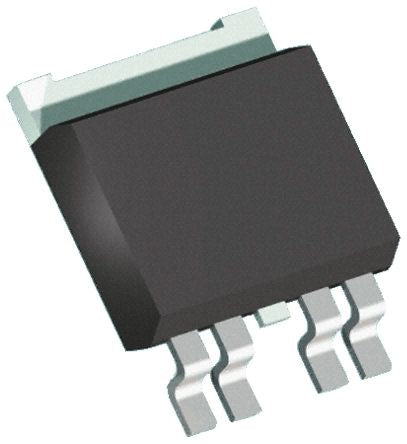

Infineon TLE4251DATMA1, LDO Tracking Regulator, 800mA Adjustable, -2 → 45 V, 0.5% 5-Pin DPAK [TLE4251DATMA1]; 823-5623
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | -2 → 45 V |
| Output Type | Adjustable |
| Package Type | TO-252 |
| Maximum Output Current | 800mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 40 V |
| Pin Count | 5 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 2µA |
| Accuracy | 0.005 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 2.3mm |
| Width | 6.22mm |
| Load Regulation | 35 mV |
| Enable | Yes |
| Length | 6.5mm |
| Line Regulation | 25 mV |
| Dimensions | 6.5 x 6.22 x 2.3mm |
