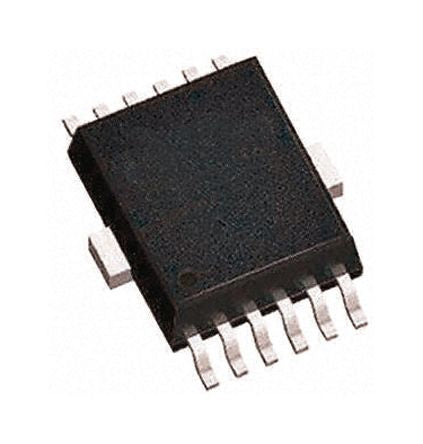

Infineon TLE4473GV552AUMA1, 4 LDO Regulator, 300mA, 5 V, 25mV 12-Pin, DSO-12-11 [TLE4473GV552AUMA1]; 178-5077
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 V |
| Output Type | Fixed |
| Package Type | DSO-12-11 |
| Maximum Output Current | 300mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 5.6 V |
| Maximum Input Voltage | 42 V |
| Pin Count | 12 |
| Number of Outputs | 4 |
| Polarity | Positive |
| Quiescent Current | 500µA |
| Accuracy | 25mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 2.6mm |
| Line Regulation | 20 mV |
| Width | 7.5mm |
| Enable | Yes |
| Load Regulation | 50 mV |
| Dimensions | 7.8 x 7.5 x 2.6mm |
| Length | 7.8mm |
