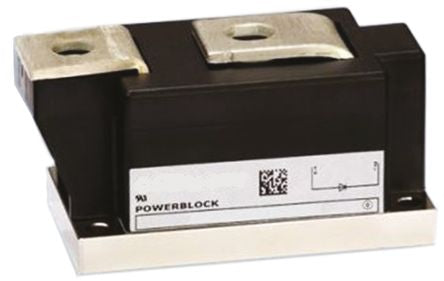

Infineon, TZ500N12KOFHPSA1, Thyristor, 1200V 500A, 250mA 5-Pin, BG-PB501-1 [TZ500N12KOFHPSA1]; 145-8674
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 500A |
| Thyristor Type | PCT |
| Package Type | BG-PB501-1 |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 17000A |
| Mounting Type | Panel Mount |
| Maximum Gate Trigger Current | 250mA |
| Maximum Gate Trigger Voltage | 2.2V |
| Maximum Holding Current | 300mA |
| Pin Count | 5 |
| Length | 101mm |
| Width | 50mm |
| Height | 52mm |
| Dimensions | 101 x 50 x 52mm |
| Peak On-State Voltage | 1.53V |
| Repetitive Peak Off-State Current | 100mA |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Forward Blocking Voltage | 1800V |
| Minimum Operating Temperature | -40 °C |
