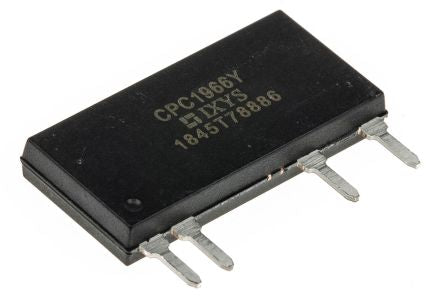

IXYS 3 A rms SPNO Solid State Relay, Zero Crossing, PCB Mount, SCR, 240 V ac Maximum Load [CPC1966Y]; 906-1091
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 A rms |
| Maximum Load Current | 3 A rms |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 20 V ac |
| Maximum Load Voltage | 240 V ac |
| Minimum Control Voltage | 0.9 V |
| Maximum Control Voltage | 1.4 V |
| Switching Type | Zero Crossing |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | SCR |
| Package Style | SIP |
| Maximum Turn On Time | 0.5 cycles |
| Dimensions | 21.082 x 3.302 x 10.16mm |
| Depth | 3.3mm |
| Off State Leakage Current | 100 μA |
| Length | 21.08mm |
| Control Voltage Range | 20 → 240 V rms |
| Capacitance | 3pF |
| Operating Temperature Range | -40 → +85°C |
| Special Features | AC Output, DC Control, High Noise Immunity, Low EMI and RFI Generation, Machine Insertable, Optically Isolated, TTL & CMOS Compatible, Wave Solderable, Zero Crossing Detection |
| Relay Type | Power Relay |
| Height | 10.16mm |
| Standards Met | CSA, UL File E69938 |
| Number of Poles | 1 |
