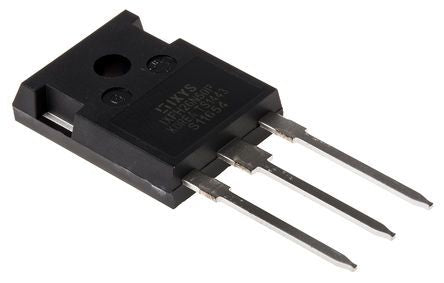

IXFH26N50P N-Channel MOSFET, 26 A, 500 V HiperFET, Polar, 3-Pin TO-247 IXYS [IXFH26N50P]; 920-0773
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 26 A |
| Maximum Drain Source Voltage | 500 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 230 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5.5V |
| Maximum Power Dissipation | 400 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 5.3mm |
| Length | 16.26mm |
| Height | 21.46mm |
| Series | HiperFET, Polar |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 60 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
