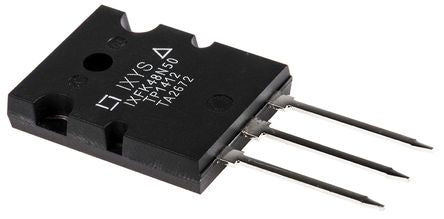

IXFK48N50 N-Channel MOSFET, 48 A, 500 V HiperFET, 3-Pin TO-264AA IXYS [IXFK48N50]; 920-0870
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 48 A |
| Maximum Drain Source Voltage | 500 V |
| Package Type | TO-264AA |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 100 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 500 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 26.16mm |
| Width | 5.13mm |
| Maximum Operating Temperature | +150 °C |
| Series | HiperFET |
| Typical Gate Charge @ Vgs | 270 nC @ 10 V |
| Transistor Material | Si |
| Length | 19.96mm |
| Minimum Operating Temperature | -55 °C |
