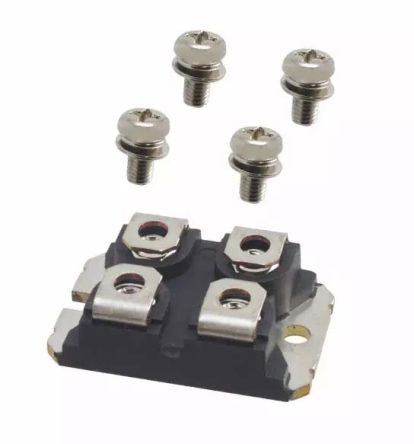

IXFN150N65X2 N-Channel MOSFET, 145 A, 650 V HiperFET, 4-Pin SOT227 IXYS [IXFN150N65X2]; 146-4398
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 145 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | SOT227 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 17 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 1.04 kW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.4V |
| Width | 25.07mm |
| Length | 38.23mm |
| Series | HiperFET |
| Height | 9.6mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 335 @ 10 V nC |
