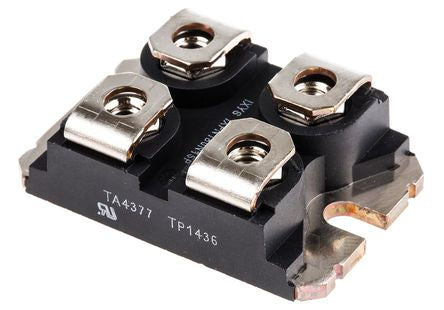

IXFN180N15P N-Channel MOSFET, 150 A, 150 V HiperFET, Polar, 4-Pin SOT-227B IXYS [IXFN180N15P]; 920-0757
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 150 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | SOT-227B |
| Mounting Type | Panel Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 11 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Maximum Power Dissipation | 680 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Series | HiperFET, Polar |
| Height | 9.6mm |
| Width | 25.42mm |
| Typical Gate Charge @ Vgs | 240 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Length | 38.23mm |
| Maximum Operating Temperature | +175 °C |
