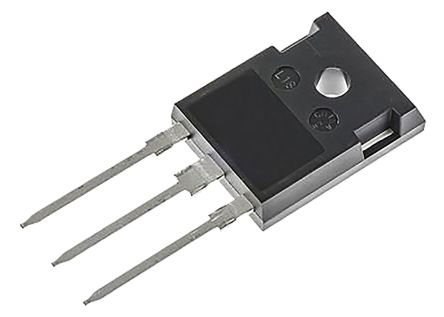

IXFR140N30P N-Channel MOSFET, 70 A, 300 V Polar HiPerFET, 3-Pin ISOPLUS247 IXYS [IXFR140N30P]; 125-8045
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 70 A |
| Maximum Drain Source Voltage | 300 V |
| Package Type | ISOPLUS247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 26 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 300 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 16.13mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 185 nC @ 10 V |
| Series | Polar HiPerFET |
| Height | 21.34mm |
| Width | 5.21mm |
| Forward Diode Voltage | 1.3V |
| Minimum Operating Temperature | -55 °C |
